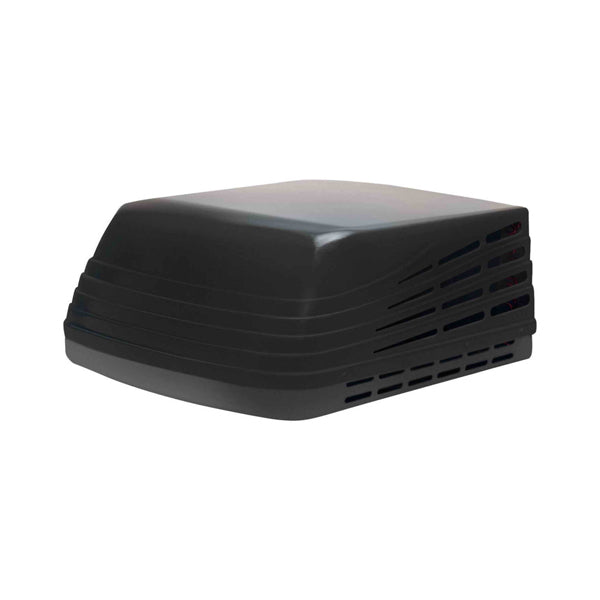

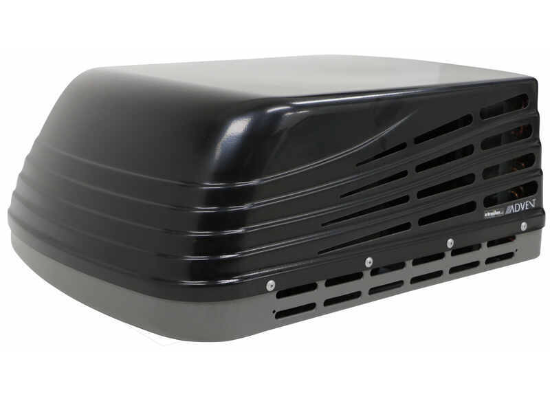

Advent Air 13,500 BTU RV Air Conditioner - Black - Coleman/Dometic Replacement

SKU: KE-ACM135B
$1,099.95Taxes calculated at checkout
Only 3 left — Order now!
Estimate shipping
Free shipping over $100
Easy returns within 30 days
100% secure payment
RV expert support

Description

Advent Air RV Air Conditioner - 13,500 BTU - Black
Part Number: ACM135B

  • 13,500 BTU Cooling Power : Perfect for medium to large trailers, Class C motorhomes, and standard fifth wheel trailers (200 to 300 sq. ft).

  • Compatible with ducted or non-ducted systems : Versatile installation according to your setup.

  • Quiet Operation : Foam cushions to reduce noise and provide a more peaceful experience.

  • Direct replacement for Coleman units : 6-pin connection makes it easy to replace with Coleman Mach or Dometic models (requires #ACCOLKIT or #ACCARKIT).

  • Folding gasket : Prevents water infiltration without needing additional sealant.

  • Durable black plastic cover : Protects components from debris while adding a modern touch to your RV.

Additional Features :

  • Compatible with heating element (sold separately - #ACMHD) : Ideal for chilly mornings or cooler evenings.

  • Easy to install : Designed for roofs with a thickness of 2.5" to 5", standard opening 14-1/4" x 14-1/4".

  • Powerful air flow : 500 cubic feet/minute.

  • Dimensions : 31-3/16" (L) x 24-7/8" (W) x 12-13/16" (H)

  • Weight : 68 lbs

  • Power Consumption :

    • Total: 15 A

    • Compressor: 9.9 A

    • Fan: 2.6 A

    • Voltage: 115V / 60Hz

  • Refrigerant : R410a (16.9 oz)

  • Limited 2-year warranty

  • Incompatibility : Does not work if the control box is integrated into your existing air conditioner - check wiring.
