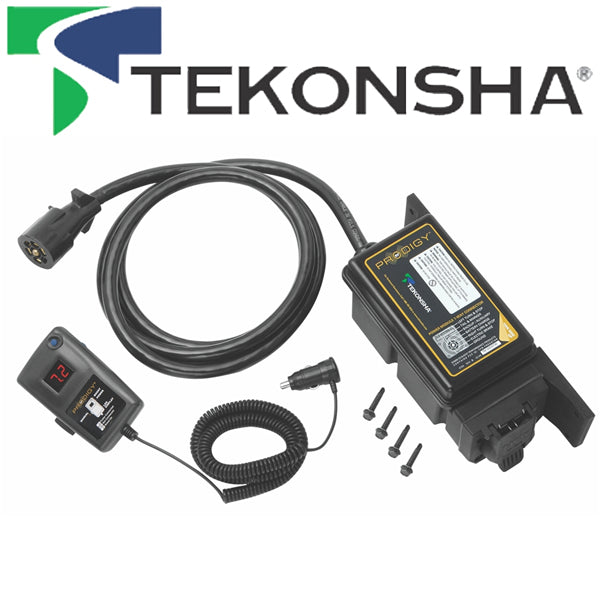

Tekonsha 90250 Prodigy RF brake controller

For rental companies, fleet owners or multiple tow vehicles. Requires no leveling. Handheld Remote Unit: No under dash wiring required, uses wireless communication. The original Boost function allows different levels of personalized braking. The system runs continuous diagnostics and displays error codes on the display of handheld units. Plugs into standard 12 volt power accessory adapter. Trailer Power Module: Uses a standard 8 foot sealed blade style 7-way connector. Multiple mounting positions on boom or front of trailer. If you're hitting the road with multiple vehicles, there's really only one PRODIGY RF solution. Consider all it offers: the user doesn't need a hard-wired dash-mounted brake control. True proportional trailer braking, front or rear. Trailer braking power supplied through the vehicle's 7-way connector. Suitable for use on any trailer with up to 3 brake axles. In the portable tow vehicle unit: Wireless communication between the remote control and the trailer-mounted power module eliminates the need for under-dash wiring. Easy-to-view LED display for trailer brake voltage, power output and diagnostics. Easy to use remote control - includes the Prodigy Boost system to allow for different levels of custom braking. The unit provides continuous diagnostic analysis with a visual warning display. The portable unit plugs into any standard 12 volt power accessory adapter. The portable unit has a 5 year limited warranty. On the Trailer Power Module: The power module uses standard RV Blade style Bargman 7 way truck and trailer connectors. The trailer power module is waterproof and is powered by a 7-way cable from the tow vehicle. Several mounting options on the tongue or at the front of the trailer.

Specifications:

• Manufacturer: Tekonsha
• Model: 90250
• Product dimensions 31.9 x 21.92 x 15.88 cm
• Item model number 90250
• Tekonsha 90250 Prodigy RF Trailer-Mount Brake Control
