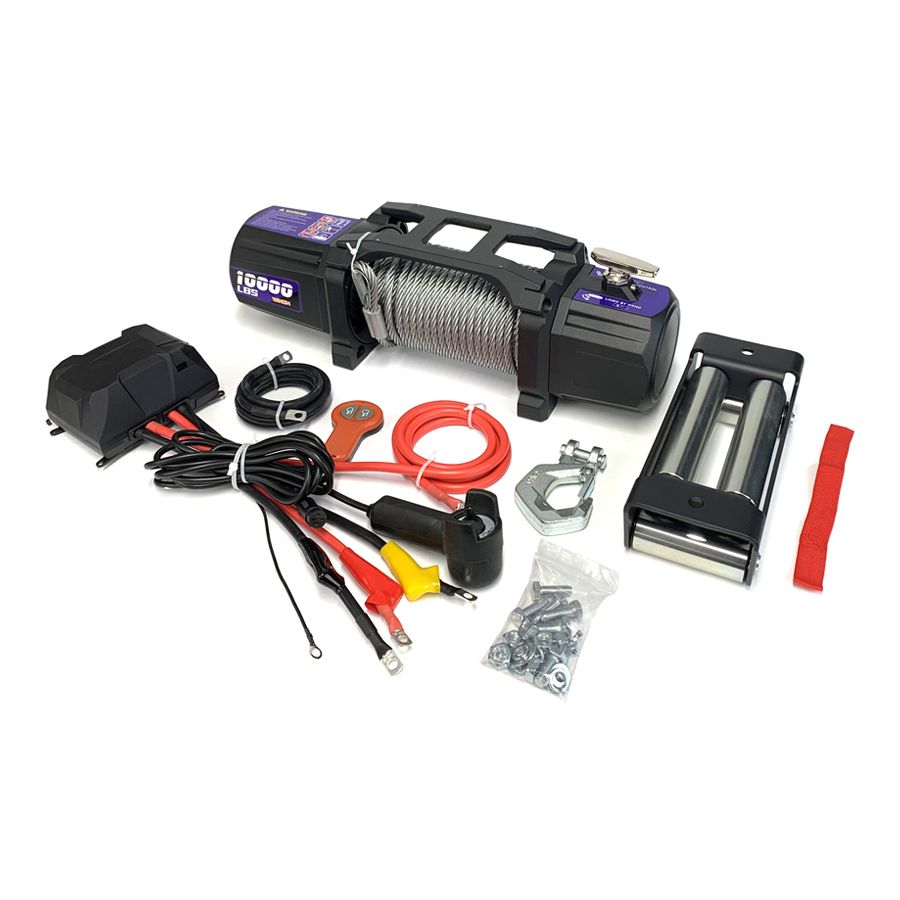

10,000 lb Electric Winch with Wireless Remote and 26m Steel Cable – 12V/24V Heavy-Duty
Description
Heavy-duty electric winch rated for 10,000 lb (4,536 kg), designed for intensive applications, includes a 26-meter steel cable and both wired and wireless remote controls. Ideal for ATVs, SUVs, trucks, and trailers.
Main features:
-
Pulling capacity: 10,000 lb (4,536 kg)
-
Powerful motor: 5.6HP / 4.2KW, 12V or 24V DC series motor
-
Remote control:
-
12 ft (3.7 m) wired
-
Wireless included
-
-
Cable type: Steel, 9.1 mm diameter x 26 m (85 ft)
-
Automatic braking: Integrated braking system on the drum
-
Gear train: 3 planetary levels
-
Gear ratio: 265:1
-
Clutch: Sliding ring
-
Cable guide: 4 directional rollers
-
Drum size: 63.5 mm (2.5") x 228 mm (9")
-
Total dimensions: 540 x 160 x 218 mm
-
Weight: 43 kg (net), 44 kg (gross)
-
Recommended battery: Minimum 650 CCA
-
Bolting pattern: 254 x 114.3 mm
Performance according to the load:
| Load (lb/kg) | Speed (ft/min / m/min) | Amperage |
|---|---|---|
| 0 | 22.3 / 6.8 | 74 A |
| 2,500 / 1136 | 11.5 / 3.7 | 125 A |
| 5,000 / 2268 | 9.1 / 3.2 | 187 A |
| 7,500 / 3400 | 6.9 / 2.26 | 217 A |
| 10,000 / 4536 | 4.9 / 1.75 | 308 A |
Cable length per drum layer:
| Layer | Pull (lb/kg) | Cumulative length (ft/m) |
|---|---|---|
| 1 | 10,000 / 4536 | 16.9 / 5.15 |
| 2 | 7,995 / 3634 | 38.07 / 11.6 |
| 3 | 6,661 / 3028 | 63.5 / 19.36 |
| 4 | 5,708 / 2595 | 85 / 26 |
